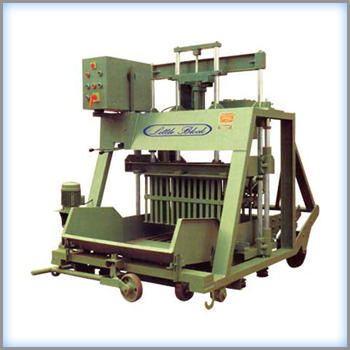

Hydraulic Concrete Block Making machine

It is an egg laying HYDRAULIC CONCRETE BLOCK MAKING MACHINE on wheels, which lays blocks on the concrete floor and moves on to the next laying. Any type of concrete blocks can be produced with a consistent quality by fixing different types of concrete moulds and ram into the machine.New spares are readily available to replace the wearing parts, which are interchangeable.

Single Vibrator System - A regular machine with one vibrator to the mould.

Double Vibrator System - Existing single vibrator mould machine can be converted into Double Vibrator adding one more vibrators to the mould.
Triple Vibrator System - The concrete in the mould is heavily compacted by applying vibrations from top through the ram and a double vibrator at the mould.
The products require low maintenance. The designs are well thought out. These are best quality inputs. The company offers timely delivery and prompt services. The company can provide any type of Mould as suggested by the customers.

Customers can avail the expertise developed through years of practical experience, from our technically qualified personnel in putting up the plant,right from the layout upto marketing of blocks.
View More Specifications

SPECIFICATION	Single Vibrator Sytems	Double Vibrator System r	Trible Vibrator
1. Power (Total )	5 h.p. - 3 phase	6.5 h.p. - phase	8 h.p. - 3 phase
Hydraulic pump	3 h.p. -1440 r.p.m.	3 h.p. - 1440 r.m.p.	3 h.p. - 1440 r.m.p
Vibrator: Mould	1.5 h.p. -2800 r.m.p	1.5 h.p. X 2 - 2800 r.p.m.	3 h.p. X 1- 2800 r.p.m
Ram			1.5 h.p. X 1 - 2800 r.p.m.
Propeltion	0.5 h.p. - 1400 r.m.p.	0.5 h.p. - 1440 r.p.m.	0.5 h.p. X 1 - 1440 r.p.m.
2.WEIGHT (Approx) without mould	900 kg	950 kg	1050 kg
3. Operating Pressure	140Kg/Cm2
4. Vibrations	6000 HZ Amplitude Adjustable
5. Drive	25:1 Worm reduction Gear Box and chain through front wheel
6. Moulding Area	860 X 600 mm
7. Max. Block Height	250 mm
8.Dimensins	2000 X 1500 X 2000 mm
9. Capacity	50 to 600 strokes / Hour
	200 X 200 X 400 mm ( 8 inch) blocks - 200 to 240 / hour
	150 X 200 X 400 mm (6 inch) block- 250 to 300 / hour
	100 X 200 X 400 mm ( 4 inch) block - 400 to 480 / hour
