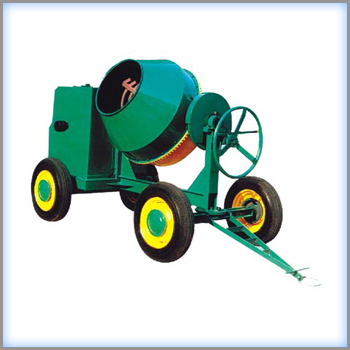

Concrete Mixer

KARTHIK Concrete Mixers are made out of rolled steel sections, which are designed and engineered for optimum stability and durability as required by the construction industry. The machine is perfectly aligned, so as to increase the life of the components. We have a deep commitment towards quality.
The machine is inspected in 3 stages. One is the inspection of raw material, second is during assembly and the third after assembly. Each machine is tested before its dispatch.
Our after sales service is among the best in the industry. Any of our existing customers will vouch for our prompt and efficient service.

Particulars	Without Hopper	With Hopper	With Hydraulic Hopper
Capacity
Unmixed	10cft (280lts)	10cft (280lts)
Mixed	7cft (200lts)	7cft (200lts)	7cft (200lts)
Dimensions
Length without towbar	96"(2.44m)	105"(2.67m)	99"(2.52m)
Height	70"(1.78m)	92"(2.34m)	78"(2.10m)
Width	45"(1.14m)	90"(2.29m)	108"(2.74m)
Powered by	6 HP Diesel engine/	6 HP Diesel engine / 5 HP Electric Motor	6 HP Diesel engine / 5 HP Electric Motor
	3 HP Electric Motor	5 HP Electric Motor	5 HP Electric Motor
Chassis	All steel construction	All steel construction	All steel construction
Drum Speed	20 RPM	20 RPM	20 RPM
Wheels	Tyre / Cast iron / Mild Steel	Tyre / Cast iron / Mild Steel	Tyre / Cast iron / Mild Steel
Weight	600 kgs Approx (with prime mover)	600 kgs Approx (with prime mover)	600 kgs Approx (with prime mover)
